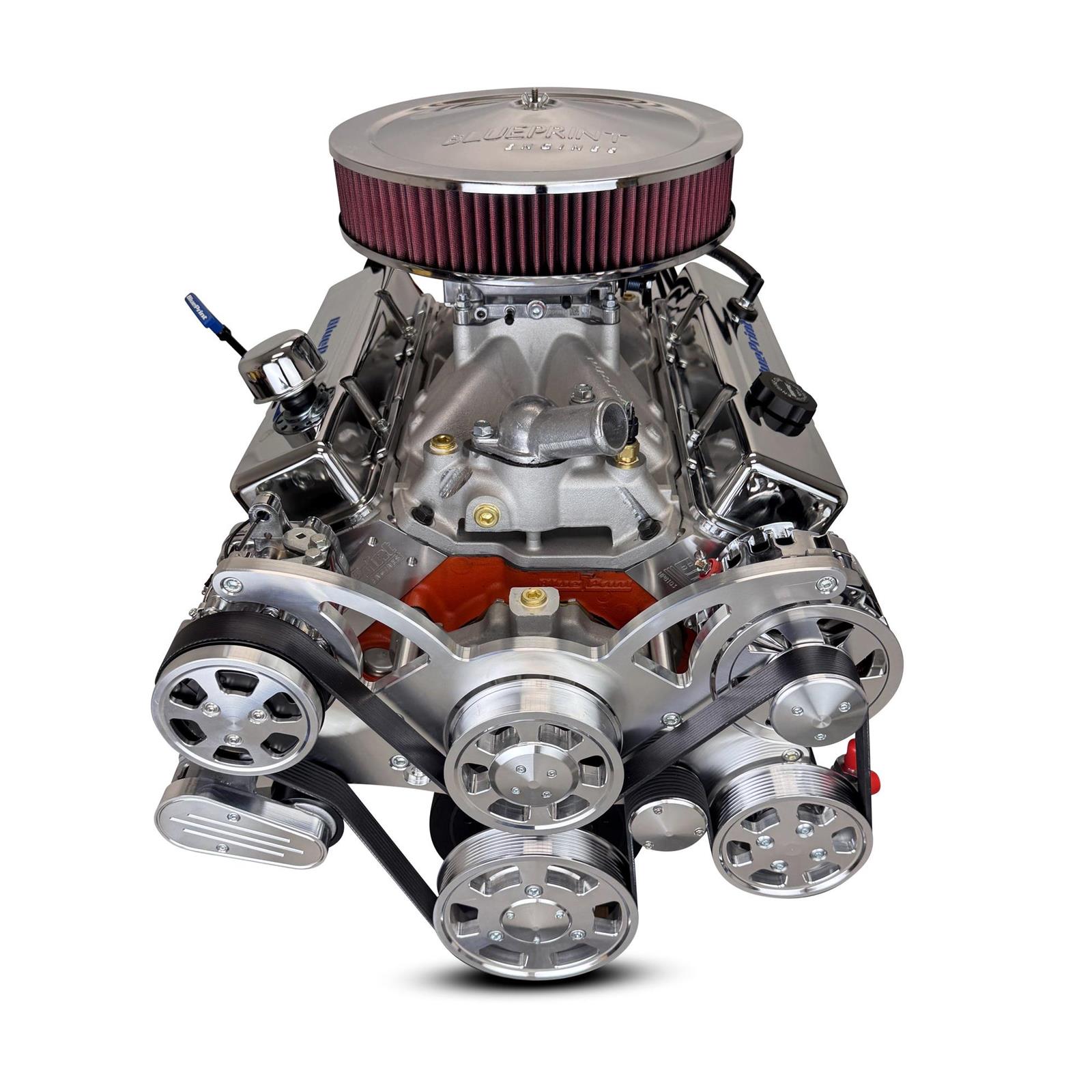

BluePrint Engines B427FK700 SBC 427/540HP with 700R4, EFI, Pol.

This BluePrint Builder Series 427 c.i. Pro Series engine and 700R4 automatic transmission package is a high-output small block Chevy combination built for serious street performance with modern fuel injection and overdrive cruising. Delivering 540 horsepower and 535 ft.-lbs. of torque, it combines forged internals, aluminum heads, a hydraulic roller cam, Holley Sniper 2 EFI, and a polished front accessory drive with a complete 700R4 automatic transmission package for a powerful, responsive setup made for hard acceleration and street-ready drivability. BluePrint 427 delivers 540 horsepower and 535 ft.-lbs. of torque Holley Sniper 2 EFI system Forged steel crank, forged pistons, aluminum heads, and hydraulic roller cam Polished front accessory drive Complete 700R4 automatic transmission package includes torque converter, flexplate, and starter Block: BluePrint Engines High Strength Cast Iron Block Manufactured and Machined in the USA! Drilled and Tapped for Clutch Linkage Mech Fuel Pump Provision: Yes Passenger Side Dipstick 1-Piece Rear Main Seal 4-Bolt Main 4.125" Bore Rotating Assembly: BluePrint Forged Crankshaft 4.000" Stroke Forged 6.000" Connecting Rods Forged Pistons Internally Balanced Front and Rear Cylinder Heads: BluePrint Aluminum Cylinder Heads – HP8103 66cc Chamber 2.08" Intake / 1.60" Exhaust Valves 220cc Intake / 67cc Exhaust Runners Cam Specs: Hydraulic Roller .577 Intake / .577 Exhaust Lift 240 Intake / 248 Exhaust Duration @ .050-112 Degree Lobe Separation Ignition Timing: Initial Timing 10-16° and Total Timing 32-34° Also Includes: Satin Aluminum Intake Manifold – BPP427454INT Pro Series Ready Run Distributor – BPP3503BK Holley Sniper 2 EFI System – BPP550-510-3XX Thermostat and Thermostat Housing Valve Covers – BPP9518 Spark Plugs and Wires EFI Fuel Pump Kit – BPP5267 Timing Cover Oil Pan Polished Front Accessory Drive – BPP350FDACPS4 Reverse Rotation Short Water Pump Type II Power Steering Pump Remote Power Steering Pump Reservoir 140amp 1-wire Alternator 7B10 Peanut Style Air Conditioning Compressor Assembled with Complete 700R4 Automatic Transmission Package: 700R4 Complete Package 2200-2400 Stall Torque Converter Flex Plate Starter

Highlights

• BluePrint 427 delivers 540 horsepower and 535 ft.-lbs. of torque
• Holley Sniper 2 EFI system
• Forged steel crank, forged pistons, aluminum heads, and hydraulic roller cam
• Polished front accessory drive
• Complete 700R4 automatic transmission package includes torque converter, flexplate, and starter

Specifications

• Engine Displacement: 427 cu. in.
• Horsepower: 540 horsepower
• Compression Ratio: 10.0:1
• Camshaft Type: Hydraulic Roller Tappet
• Cylinder Head Material: Aluminum
• Piston Material: Forged Aluminum
• Crankshaft Material: Forged Steel
• Combustion Chamber Volume: 66cc
• Camshaft Duration (.050 in): 240° intake / 248° exhaust
• Camshaft Lift (in): .577 intake / .577 exhaust
• Intake Manifold Included: Yes
• Distributor Included: Yes
• Connecting Rod Material: Forged Steel
• Cylinder Heads Included: Yes
• Throttle Body Included: Yes
• Oil Pan Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: Yes
• Harmonic Balancer Included: Yes
• Flexplate Included: Yes
• Air Cleaner Included: Yes
• Spark Plugs Included: Yes
• Spark Plug Wires Included: Yes
• MFG. Part #: B427FK700
• Sold in Quantity: Kit
• Brand: BluePrint Engines

Emissions Notice

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine
