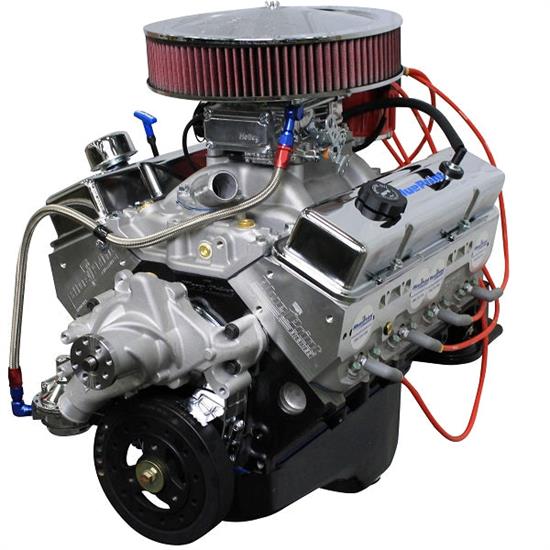

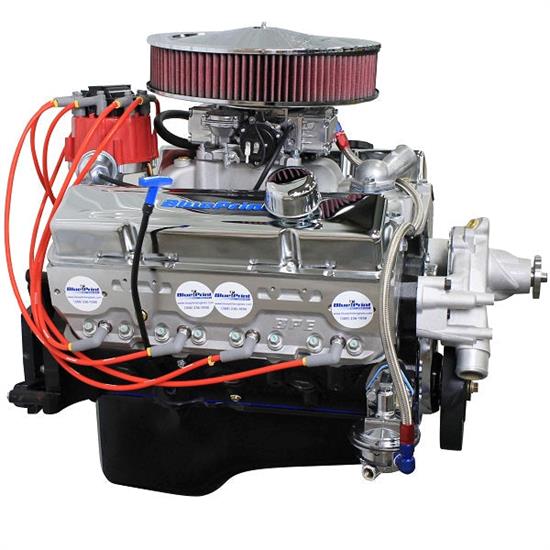

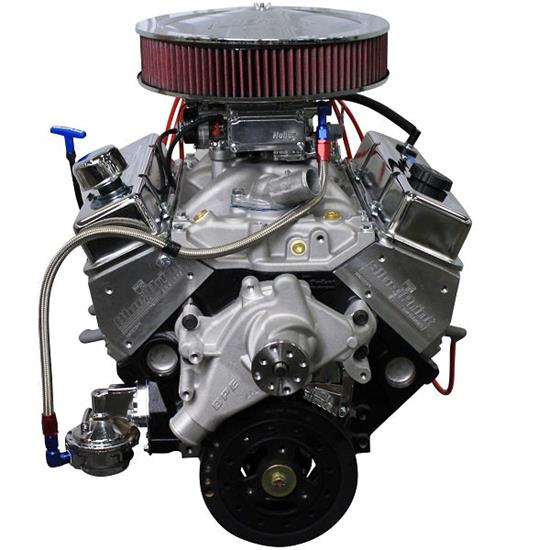

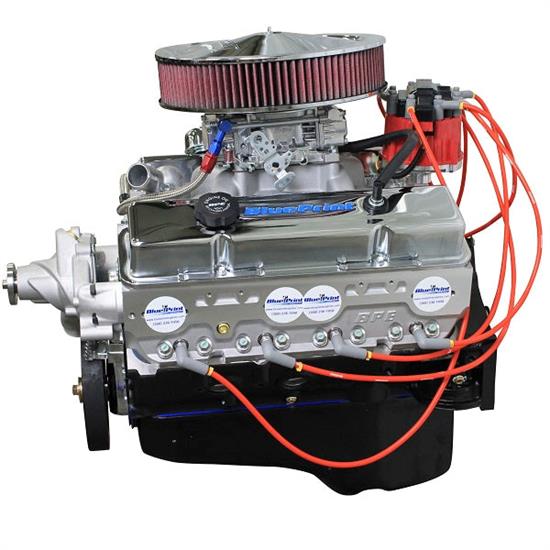

BluePrint BP3505CTCD 350 Deluxe Dressed Carbureted Crate Engine

BluePrint Engines 350CI Crate Engine, Base Dressed Longblock, Carbureted HP And Torque: 390 HP / 410 FT LBS Compression ratio: 9.2:1 Aluminum heads Hydraulic roller cam Cast iron crank Hypereutectic pistons BLOCK: NEW BluePrint cast iron block Manufactured and Machined in the USA! 4-bolt main 4.000" bore 1-Piece rear main seal Mechanical fuel pump provision Passenger Side Dipstick Drilled and tapped for clutch linkage ROTATING ASSEMBLY: Cast Iron Crankshaft 3.480" Stroke Forged 5.700" connecting rods Hypereutectic pistons Internal Front/ External Rear engine balance CYLINDER HEADS: BluePrint Aluminum Cylinder Heads – H8002K 64cc chamber 2.02" intake/1.60" exhaust valves 195cc intake/75cc exhaust runners CAM SPECS: Roller cam .495 Intake .502 Exhaust 220 Intake / 224 Exhaust duration @ .050 – 114 degree lobe separation IGNITION TIMING: 32 Degrees Total at 3500 RPM ALSO INCLUDES: Valve covers Harmonic balancer Spark plugs Spark plug wires Standard Rotation Long Style Water Pump Waterneck and Thermostat Fuel Pump Oil pan Timing cover Aluminum intake HEI distributor 600 cfm carburetor Dyno test results shipped with engine WARRANTY: 30 month / 50,000 mile

Specifications

• MFG. Part #: BP3505CTCD
• Brand: BluePrint Engines

Emissions Notice

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine
