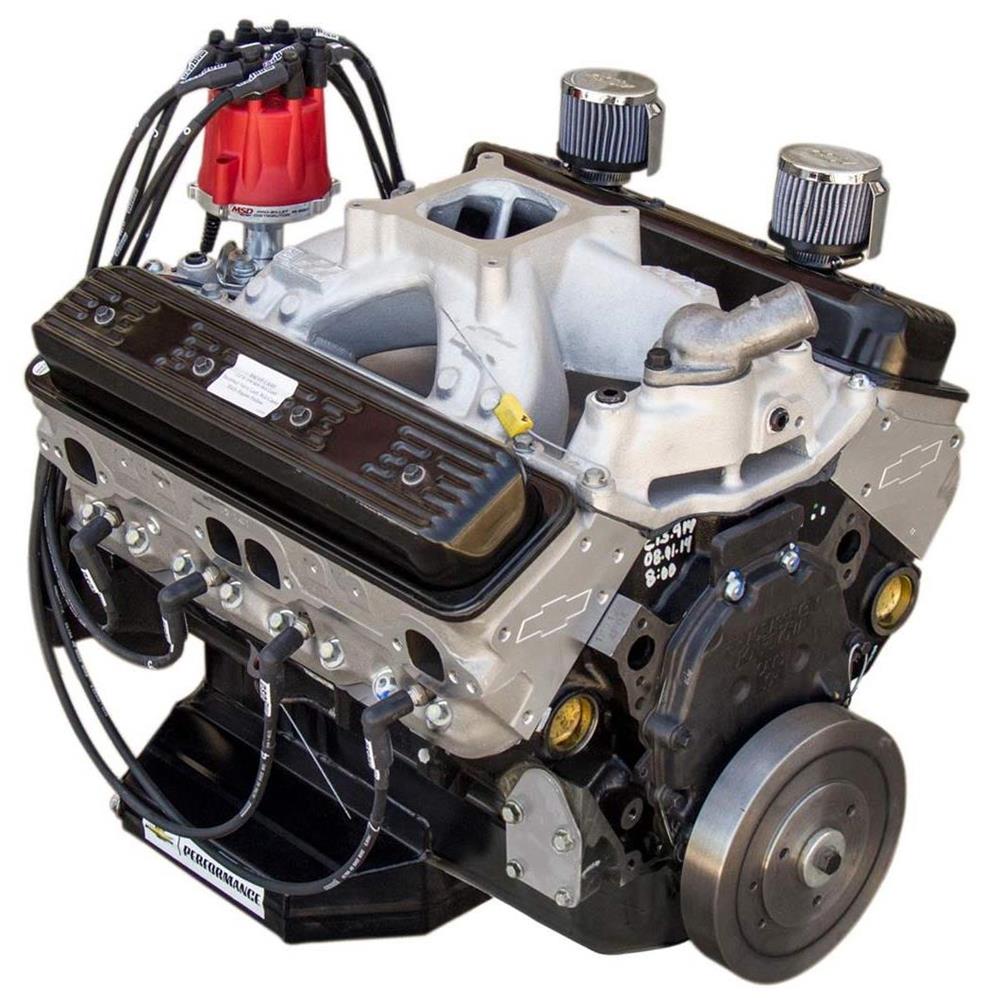

CT400 IMCA-Sealed 604 Crate Engine, Dyno Tested, Dressed

Run up front with the 400-horsepower CT400 crate engine (often referred to as the "604 crate") featuring Fast Burn heads from GM Performance Parts. Now, Speedway Motors Racing Engines is offering this 604 crate engine as a dressed & dyno-verified package that is ready to race! These IMCA-sealed 604 crate racing engines are based on the popular Fast Burn 385 street crate engine, but include a racing-only 8-quart circle track oil pan with dual kick-out design, along with a valve cover breather kit and special "kool nut" rocker arm design. The assembly also includes an open-plenum high-rise intake manifold and 1.5:1-ratio aluminum roller rockers. The 604 crate engine includes a bulletproof bottom end, anchored by a forged steel crankshaft and hypereutectic pistons. The 23-degree, Fast Burn aluminum heads enable tremendous power in the small-block V-8 because of a unique chamber design that quickly and completely burns all of the air/fuel mixture – giving you maximum power. With the CT400 racing engine under the hood of your Modified or Late Model, you'll put a "fast burn" on the competition. Dyno-verified horsepower and torque Piston rings are broken-in using a proprietary dyno program Lash and timing are individually tuned MSD Pro-Billet distributor is installed & timed Engine is ready to race, right out of the crate IMCA-sealed for equal competition Popular in Modified and Late Model classes* 400 HP @ 5500 RPM 400 ft. lbs. of torque @ 4500 RPM 4.00" x 3.48" bore x stroke 9.6:1 compression ratio 92 octane recommended fuel 4-bolt main caps Cam lift: .474" intake / .510" exhaust Cam duration @ .050": 208° intake / 221° exhaust 112° lobe separation 1.5:1 ratio aluminum roller rocker arms 2.00" Intake / 1.55" Exhaust valves Features Includes: Fully assembled long block Black steel valve covers w/ breathers Oil pump, pick-up, 8 quart oil pan Eliminator Vortec intake manifold MSD Pro-Billet85501distributor Moroso Ultra 40 spark plug wires, black, under-header (terminals installed) Spark plugs 8" harmonic balancer Front timing cover Fuel pump block-off plate Dyno sheet of your engine IMCA-issued bolts and is approved for use in IMCA *Check track/series rules for approved applications.

Highlights

• 400 HP @ 5500 RPM
• 400 Ft lbs. Torque @ 4500 RPM
• CNC Machined Block
• Popular in Late Models, Modifieds, and other classes
• Comes Complete Intake to Pan

Specifications

• Crate Engine Type: Long Block
• Engine Displacement: 350 cu. in.
• Horsepower: 400 horsepower
• Compression Ratio: 9.6:1
• Torque: 400 ft./lbs.
• Camshaft Type: Hydraulic Roller Tappet
• Cylinder Head Material: Aluminum
• Piston Material: Hypereutectic Aluminum
• Crankshaft Material: Forged Steel
• Combustion Chamber Volume: 62cc
• Camshaft Duration (.050 in): 208° intake / 221° exhaust
• Camshaft Lift (in): .474 intake / .510 exhaust
• Bore x Stroke (in): 4.000" x 3.480"
• Carburetor Included: No
• Intake Manifold Included: Yes
• Distributor Included: No
• Connecting Rod Material: Powdered Metal
• Valve Covers Included: Yes
• Assembled: Yes
• Engine Balance: External
• Cylinder Heads Included: Yes
• Rear Main Seal Style: 1-piece
• Throttle Body Included: No
• Oil Pan Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: Yes
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: Yes
• Spark Plug Wires Included: Yes
• Computer Included: No
• Wiring Harness Included: No
• Cylinder Head Style: Assembled
• Intake Runner Volume: 210cc
• Intake Valves Included: Yes
• Intake Valve Diameter: 2"
• Exhaust Valves Included: Yes
• Exhaust Valve Diameter: 1.55"
• Camshaft Included: Yes
• Rocker Arm Ratio: 1.5:1
• MFG. Part #: 19419604
• Sold in Quantity: Each
• Brand: Speedway Motors Racing Engines

Emissions Notice

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine
